CAT/BT CNC Tool Holder Tightening Fixtures
Machinists Choice™ heavy-duty CNC tightening fixtures for CAT and BT tool holders. Choose CAT/BT 30, 40 or 50 to match your tooling system.
Features
- UNIVERSAL FIXTURE: To be used with CAT and or BT Collet Chucks
- HEAVY DUTY CONSTRUCTION: Made of High Qualiyt Steel.
- POSITIONING: Can be used Vertical and Horzontal
- EASY INSTALLATION: Mount on Bench to tighten holders to allowable pressure.
- Customer Satisfaction Guarantee
- Veteran Owned Business
Applications
- VERTICAL & HORIZONTAL TOOL SETUP: Designed to securely hold CAT and BT toolholders for convenient tightening and loosening in either position.
- ER COLLET CHUCK ASSEMBLY: Provides a stable fixture for properly tightening ER collet nuts when installing or changing cutting tools.
- SAFE TOOL CHANGES: Helps prevent toolholder movement while applying the required torque to collet nuts and other tooling components.
- IDEAL FOR CNC TOOL PRESETTING: Perfect for preparing and assembling CNC tooling at the workbench before loading it into the machine spindle.
- MACHINE SHOP & TOOLROOM USE: A practical setup fixture for CNC machining centers, production shops, toolrooms, and general machining applications.

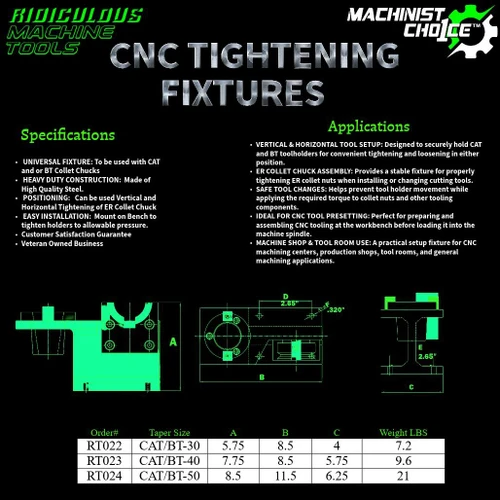

Specifications and Dimensions
| SKU | Tool Holder Size | A (in.) | B (in.) | C (in.) | Weight (lb) |
|---|---|---|---|---|---|
| RT022 | CAT/BT-30 | 5.75 | 8.50 | 4.00 | 7.20 |
| RT023 | CAT/BT-40 | 7.75 | 8.50 | 5.75 | 9.60 |
| RT024 | CAT/BT-50 | 8.50 | 11.50 | 6.25 | 21.00 |
Dimensions are in inches. Confirm holder taper size before ordering.
100% Guarantee to be Free from any Manufacturing Defects. 100% Customer Satisfaction Guaranteed
