ER SPRING COLLETS

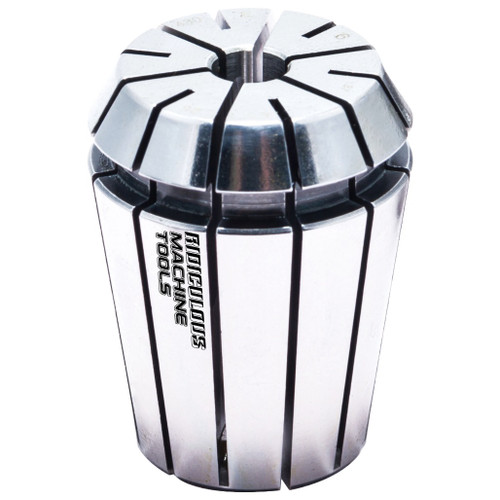

ER Spring Collets

RMT offers a wide variety of high-quality ER spring collets for all your tool-holding needs, including high-precision ER spring collets, ultra-precision ER spring collets, steel-sealed collets, and tap collets.   All our collets are made of high-quality spring steel with the best tolerances and specifications available in the industry today. We take pride in performing a thorough inspection of each collet we ship out to our customers. We serve the aerospace, automotive, industrial, energy, medical, and woodworking industries.  Our goal is 100% customer satisfaction, and if you are not happy with our products in any way, we will make it right. RMT offers the highest quality machine tool accessories in the industry at the most competitive prices available today.   All backed by our 100% Quality Control System there is no better than RMT (Ridiculous Machine Tools).



What are ER Spring Collets

If you are just starting out as a machinist you will come to know  "ER collets". ER (Elastic Retention) collets are a type of clamping device used in CNC machining that secure the cutting tool in place and provide support during the machining process. Their accuracy and holding power are crucial for producing high-quality machined parts with consistent dimensional tolerances.



Understanding the Fundamentals of ER Collets
ER collets are an essential component in CNC machining, and it is important to have a solid understanding of how they work and what affects their performance. ER Spring collets are a special type of collets used in ER Collet Systems. These collets when installed correctly in a ER Collet Chuck can prove to be one of the most universal tools for the Machinist.  The Holding Power of the ER Collet System is essential to and Machine Shop to properly hold there cutting tools in place and achieve the best tolerances.  They are available in different sizes to accommodate a range of tool diameters and come in a variety of styles and types, including High Precision, Ultra High Precision, Steel Sealed and Tapping Collets. The most commonly used size of ER collet is the ER-16 and ER-32 which are versatile enough to be used in a broad range of cutting applications. The design of ER collets is such that they can provide a high level of clamping force to secure the cutting tool or workpiece in place. The ER collet gets its name from the "ER" prefix, which stands for "Exchangeable Round." Or “Elastic Retention”   This means that ER collets are designed to be quickly and easily replaced with a different size, depending on the size of the cutting tool or workpiece being used.

The performance of ER collets is determined by several factors, including their size, material, and clamping force. Understanding these factors and how they impact the performance of ER collets is essential for improving their accuracy and holding power



Factors that Influence ER Collet Performance



1. Collet Size: The size of the ER collet is crucial to its performance. Using an incorrect size collet can result in excessive runout and reduced holding power. The collet must be the correct size for the cutting tool diameter to ensure maximum clamping force and accuracy.


 2. Cutting Tool Diameter: The diameter of the cutting tool should match the diameter of the ER collet as closely as possible. This is because the clamping force is directly proportional to the diameter of the tool. An incorrect tool diameter can lead to reduced holding power and accuracy.



 3. Inspect and Replace Worn Collets: Regular wear and tear can affect the performance of ER collets. Over time, they may become worn or damaged, reducing their holding power and accuracy. Regular inspection and replacement of worn collets are necessary to maintain their performance.



4. Clamping Force: The clamping force applied to the ER collet is a critical factor in its performance. Too much clamping force can damage the collet or the cutting tool, while too little clamping force can result in slippage and reduced accuracy. It is important to follow the manufacturer's guidelines for applying the correct torque force to ensure optimal performance from ER collets. This is usually done by using a torque wrench while tightening the collet nut to the proper torque.  Below are some examples of proper Torque by size.



ER 16                   Mini Nut                    25ft/lbs

ER 32                    Slotted                     100ft/lbs

ER 40                     Slotted                    130ft/lbs



5. Use Quality Spindle Nuts: The spindle nut is the component that holds the ER collet in place in the spindle of the CNC machine. Using high-quality spindle nuts can help to maintain the accuracy and holding power of ER collets.



6. Store ER Collets Properly: When not in use, store ER collets in a clean and dry place to prevent corrosion and damage. Storing them properly will extend the life of your Collets.





ER collets are an essential component of CNC machining, and their accuracy and holding power are crucial for producing high-quality machined parts. By understanding the basics you can improve the accuracy and holding power of ER collets, resulting in higher-quality machined parts. You will see why the ER Collet System is so widely used because of there versatility and ease of use. Whether you're a beginner machinist or an experienced professional, always strive to use the right size, material, and clamping force to ensure maximum performance from your ER collets. We are always here to help at Ridiculous Machine Tools for any application or set up optimizations you may need.  This is why we are the Machinist Choice..
