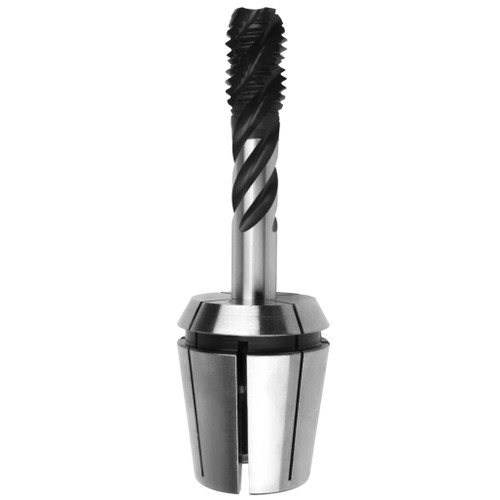

ER40 High Precision Tapping Collets
ER40 high-precision tapping collets secure both the round shank and square drive of a tap to help prevent slipping during tapping operations. Designed for compatible ER40 collet holders, this family includes 21 individual tap sizes and 3 multi-piece sets. Compare tap sizes, shank diameters, drive square dimensions and overall lengths in the chart below. Confirm your tap shank and square drive dimensions before selecting a collet.
Specifications & Tolerances
- LOCKING SYSTEM: Special Design to Lock Both the ROUND and the SQUARE Tap Shank in Slots for Maximum Gripping (No Slipping)
- TAP SHANKS : ASME B94.9-2054
- MAXIMUM PRECISION: Precision Made for Tool Shanks with H6 or Better Tolerance
- EXTREME PERFORMANCE: Designed to provide Maximum Ridgidity and Better Tapping Performance on your Taps ??
- SPECIAL DESIGN: Note that these collets do not " COLLAPSE" to the same degree as standard ER Collets. Our SLOTTED Design is for maximum clamping on the entire Tap. Shop's Choice
- HIGH QUALITY STEEL: Made of High Quality Case Hardened Steel for long lasting operating life and elasticity of Collet.
- QUALITY CONTROL PROCESS: Hand Inspected and Run out Tested 100%
- Customer Satisfaction Guarantee
- Veteran Owned and Operated
Applications
- For Use with ER Collet Chucks
- Precision CNC Tapping Operations
- High-Speed Ridgid Tapping
- For use with all ASME Standard Taps
- General Tapping & Job Shop Use
- Securely hold Tap with Special Locking Design.
ER40 Tap Collet Comparison Chart
| RMT Part Number | Description | Collet Series | Tap Size Inch | Tap Size MM | Metric ANSI Shank Tap | Tap Shank Dia. | Drive Square Size | OAL | WeightLBS |
|---|
| RT369 | NO. 6 ER40 TAP COLLET | ER40 | #6 | 141x110 | M1.6-M3.5 | .141” | .110” | 1.811" | 0.3 |
| RT370 | NO. 8 ER40 TAP COLLET | ER40 | #8 | 168x131 | M4 | .168” | .131” | 1.811" | 0.3 |
| RT371 | NO. 10 ER40 TAP COLLET | ER40 | #10 | 318x238 | M4.5,M5 | .194” | .152” | 1.811" | 0.3 |
| RT372 | NO. 12 ER40 TAP COLLET | ER40 | #12 | 381x286 | - | .220” | .165” | 1.811" | 0.3 |
| RT373 | 1/8" NPT ER40 TAP COLLET | ER40 | 1/8” NPT | 437x328 | - | .437” | 0.328 | 1.811" | 0.3 |
| RT374 | 1/4" NPT ER40 TAP COLLET | ER40 | 1/4” NPT | 562x421 | - | .562” | .421” | 1.811" | 0.3 |
| RT375 | 1/4" ER40 TAP COLLET | ER40 | 1/4” | 255x191 | M6,M6.3 | .255” | .191” | 1.811" | 0.3 |
| RT376 | 5/16" ER40 TAP COLLET | ER40 | 5/16” | 318x238 | M7,M8 | .318” | 0.238 | 1.811" | 0.3 |
| RT377 | 3/8" NPT ER40 TAP COLLET | ER40 | 3/8” NPT | 700x531 | - | .700” | .531” | 1.811" | 0.28 |
| RT378 | 3/8" ER40 TAP COLLET | ER40 | 3/8” | 381x286 | M10 | .381” | .286” | 1.811" | 0.28 |
| RT379 | 7/16" ER40 TAP COLLET | ER40 | 7/16” | 323x242 | M11 | .323” | .242” | 1.811" | 0.28 |
| RT380 | 1/2" NPT ER40 TAP COLLET | ER40 | 1/2” NPT | 6875x515 | - | .687” | .515” | 1.811" | 0.28 |
| RT381 | 1/2" ER40 TAP COLLET | ER40 | 1/2” | 367x275 | M12,M12.5 | .367” | .275” | 1.811" | 0.28 |
| RT382 | 9/16" ER40 TAP COLLET | ER40 | 9/16” | 429x322 | M14 | .429” | .322” | 1.811" | 0.28 |
| RT383 | 5/8" ER40 TAP COLLET | ER40 | 5/8” | 480x360 | M16 | .480” | .360” | 1.811" | 0.28 |
| RT384 | 11/16" ER40 TAP COLLET | ER40 | 11/16” | 542x542 | M18 | .542” | .542” | 1.811" | 0.25 |
| RT385 | 3/4" ER40 TAP COLLET | ER40 | 3/4” | 590x442 | - | .590” | .442” | 1.811" | 0.25 |
| RT386 | 13/16" ER40 TAP COLLET | ER40 | 13/16” | 652x489 | M20 | .562” | .489” | 1.811" | 0.23 |
| RT387 | 7/8" ER40 TAP COLLET | ER40 | 7/8” | 697x523 | - | .697” | .523” | 1.811" | 0.23 |
| RT388 | 15/16" ER40 TAP COLLET | ER40 | 15/16” | 760x570 | M24 | .760” | .570” | 1.811" | 0.22 |
| RT389 | 1" ER40 TAP COLLET | ER40 | 1” | 800x600 | M25 | .800” | .600” | 1.811" | 0.22 |
| RT1307 | 4-piece tap collet set: No6,No8,No10, No12 | ER40 | 4-piece set | — | — | — | — | — | 3.05 |
| RT1308 | 12-piece tap collet set: 1/8NPT,1/4NPT, 1/4",5/16",3/8NPT,3/8"7/16",1/2NPT,1/2",9/16",5/8",11/16" | ER40 | 12-piece set | — | — | — | — | — | 8.15 |
| RT1309 | 21-piece tap collet set: No6,No8,No10, No12,1/8NPT, 1/4NPT, 1/4",5/16",3/8NPT,3/8"7/16",1/2NPT,1/2",9/16",5/8",11/16",3/4",13/16",7/8",15/16",1" | ER40 | 21-piece set | — | — | — | — | — | 14.1 |
