ER Hex Lock Nuts for ER Collet Chucks
Replacement hex-style lock nuts for compatible ER collet chuck systems. Select the correct ER size and nut style for your chuck.
Features
- HIGH QUALITY STEEL: Made of High Quality Chromium STEEL..
- SECURE COLLET CLAMPING: Designed to provide consistent clamping force for securely seating and tightening ER collets in compatible ER collet chucks.
- PRECISION MACHINED: Precision machined threads and contact surfaces provide smooth engagement and reliable tightening during repeated tool changes.
- DURABLE CONSTRUCTION: Hardened, wear-resistant construction stands up to repeated tightening and loosening in demanding machining environments.
- STANDARD ER COMPATIBILITY: Designed for use with standard ER collet chuck systems and the corresponding ER-size spring collets.
- Veteran Owned Business

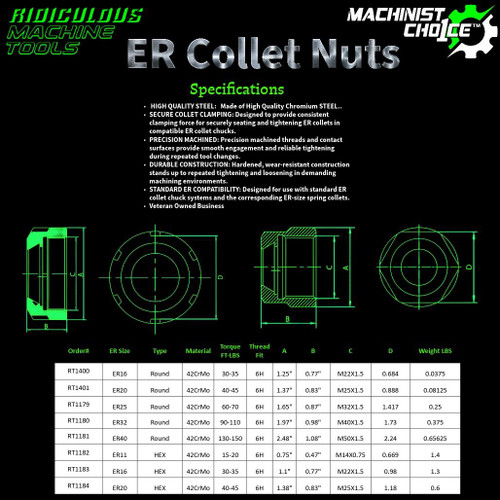

Specifications by Size
| RMT SKU | ER Size | Style | Material | Torque (ft-lb) | Thread Fit | A | B | C | D |
|---|---|---|---|---|---|---|---|---|---|
| RT1182 | ER11 | HEX | 42CrMo | 15-20 | 6H | 0.75" | 0.47" | M14X0.75 | 0.669 |
| RT1183 | ER16 | HEX | 42CrMo | 30-35 | 6H | 1.1" | 0.77" | M22X1.5 | 0.98 |
| RT1184 | ER20 | HEX | 42CrMo | 40-45 | 6H | 1.38" | 0.83" | M25X1.5 | 1.18 |
Compatibility: Verify nut type, thread and ER series before ordering.
