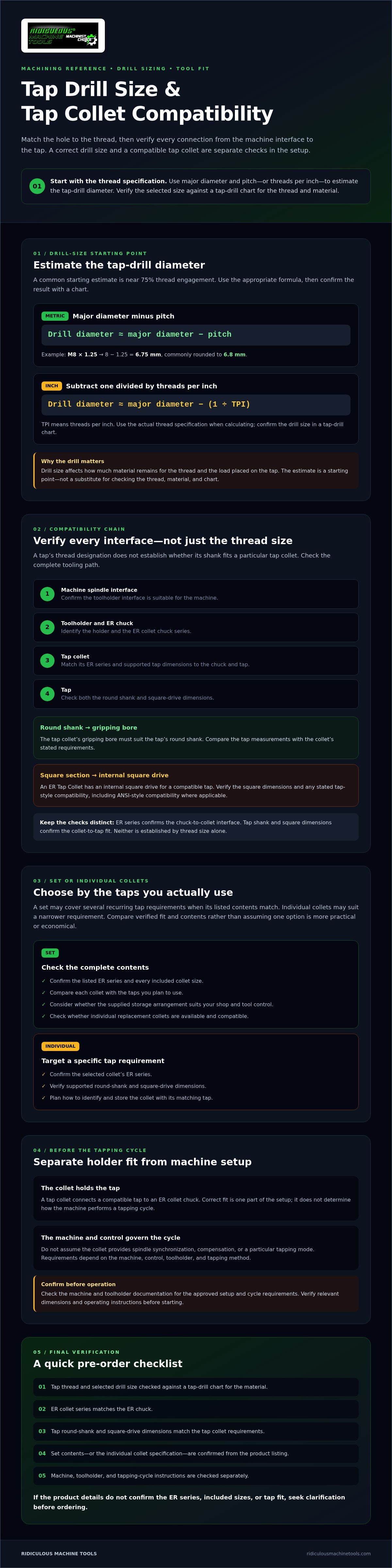

Choose a tap drill by matching the hole diameter to the thread’s major diameter and pitch or threads per inch. For a common starting point near 75% thread engagement, a metric estimate is major diameter minus pitch; for inch threads, subtract 1 divided by threads per inch. For example, an M8 × 1.25 thread gives a calculated drill diameter of 6.75 mm, commonly rounded to 6.8 mm. Check a tap-drill chart for the thread and material before drilling. If you are also selecting a tap collet set for cnc milling, verify that the collets match the taps you plan to use.

Drill size affects how much material remains for the thread and the load placed on the tap. It is only one part of the setup: the tap must also fit its holder, and the machine must be configured for the intended tapping cycle. This article explains practical drill-size selection and how to check tap collet compatibility.

You’ll learn how to compare thread specifications with drill sizes, verify ER chuck and tap compatibility, and choose between a set and individual collets. Confirm the relevant dimensions and operating instructions before starting the tapping operation.

What a tap collet set for CNC milling does, and what it does not do

A tap collet set contains collets intended to hold taps. The ER series, included collet sizes, and supported tap dimensions depend on the specific product, so check the listing before ordering. A tap collet set for cnc milling connects compatible taps to an ER collet chuck. It does not, by itself, define the complete toolholder setup or determine how the machine performs a tapping cycle.

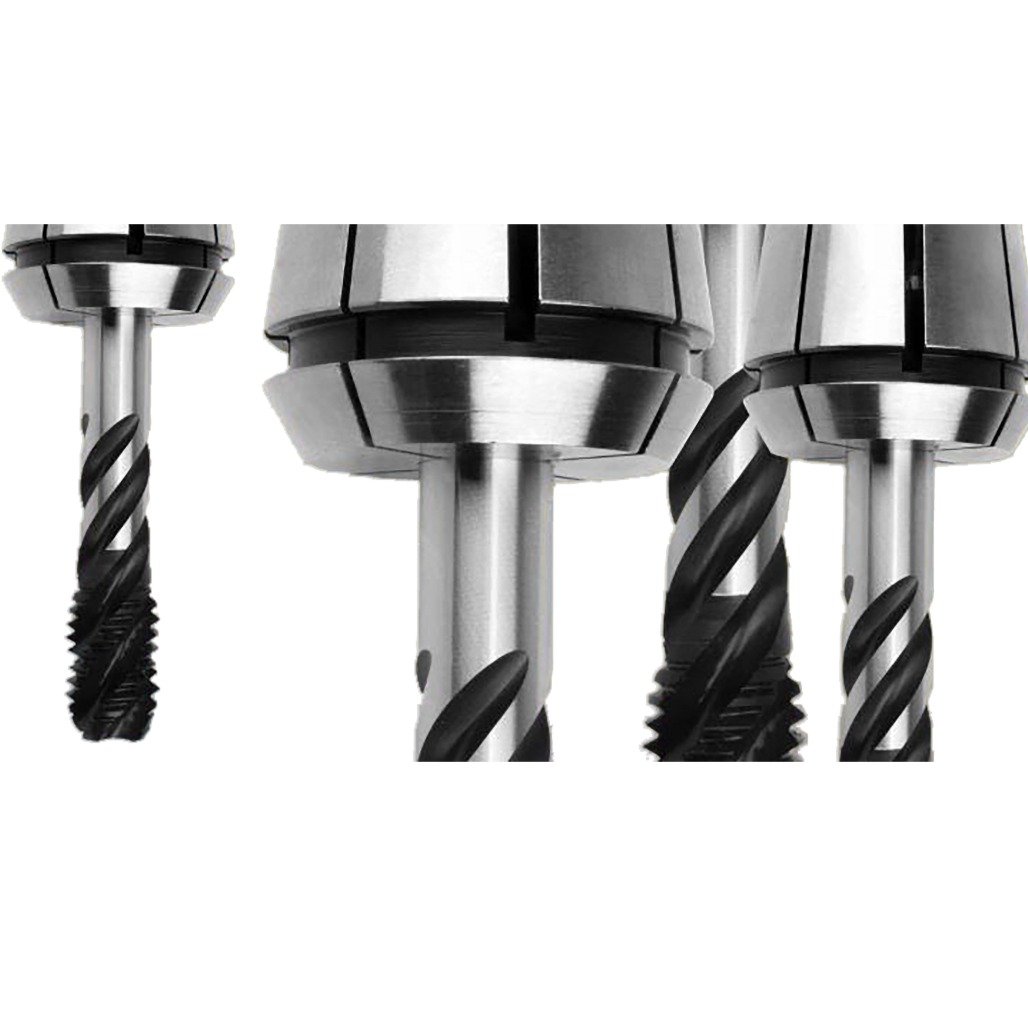

How the ER Tap Collet engages a tap

The collet’s gripping bore fits the tap’s round shank. Like a general collet, it holds tooling through its gripping surfaces when secured in a compatible chuck. An ER Tap Collet also has an internal square drive that engages the square section of a compatible tap. Both the round shank and square section must match the collet’s design. Check their dimensions and stated compatibility against the product details. Thread designation alone does not establish fit.

What the collet cannot determine for the machine

The collet holds the tap, while machine control and spindle behavior govern the tapping cycle. Don’t assume the collet provides spindle synchronization, compensation, or a particular tapping mode. Those capabilities and operating requirements depend on the machine, control, toolholder, and tapping method.

Check the machine and toolholder documentation for the approved setup and cycle requirements. This article focuses on selecting and checking a collet set, not diagnosing broken taps. Correct collet fit is one part of the setup and does not resolve every cause of tapping problems.

Check ER chuck, tap shank, and square-drive compatibility

Confirm the full tooling chain before ordering: machine spindle interface, toolholder, ER collet chuck series, tap collet, and tap. A mismatch at any connection can make the setup unsuitable, even if the tap’s thread size appears to match a listed collet size. For a tap collet set for cnc milling, use the product listing and the machine, holder, chuck, and tap manufacturers’ documentation to verify exact fit.

Match the collet to the ER collet chuck

Read the ER series marked on the chuck or specified in its documentation, then confirm that the set lists the same series. Don’t assume a collet from one ER size fits a different ER chuck. The ER designation identifies the collet and chuck interface. It does not establish whether the toolholder’s spindle taper fits your machine, so check that connection separately. For broader tooling-interface considerations, consult the National Tooling & Machining Association as an industry resource, and rely on your equipment documentation for specific interface requirements.

Match the collet to the tap

Compare the tap’s round-shank and square-drive dimensions with the tap collet’s stated requirements. Thread designation identifies the thread the tap cuts, not necessarily the dimensions needed to select its holder. Two taps for the same thread may have different shank or square dimensions. Verify the tap type and measurements against the collet details before purchase.

Check whether ANSI-style compatibility is explicitly stated for the product. Don’t assume it applies universally to all taps or collets. If the listing lacks enough detail to confirm the ER series, included sizes, or tap fit, ask the product seller or manufacturer for clarification before ordering. Treat chuck compatibility and tap compatibility as separate checks rather than using thread size as a substitute for either.

Tap collet set or individual tap collets: compare the buying options

Choose based on the taps your shop uses and the collets you can verify will fit them. A tap collet set for cnc milling may cover several recurring operations if its listed contents match your requirements. Individual collets may suit a narrower need. Neither option is automatically more economical or practical.

When a set may fit the shop's tapping mix

A set may be worth considering if its verified contents match multiple tap sizes used repeatedly in your operation. List the taps you use, then compare each tap’s shank and square-drive requirements with the collet details. A broad product title is not proof of coverage. Confirm the actual contents and ER series in the current listing.

When an individual collet may be more appropriate

If you need a collet for one specific tap, an individual purchase can keep selection focused. Verify the fit and check whether compatible replacements are currently available. For either option, compare current prices with the number and sizes you need. Don’t assume a set saves money without checking the actual listings.

Select and set up a tap collet for a CNC milling operation

Check documented compatibility before purchase, then follow the machine and tooling manufacturers’ instructions for assembly and operation. This helps distinguish tap fit from machine-cycle requirements.

Pre-purchase checks for the tap and tooling

1. Identify the tap. Record its thread designation, round-shank dimensions, and square-drive dimensions. Use the tap’s specifications rather than assuming thread size describes the shank.
2. Identify the holder. Confirm the ER series of the collet chuck and the holder’s spindle interface. These are separate interfaces, so verifying one does not confirm the other.
3. Verify the collet. Check the product documentation for the collet’s ER series, supported tap dimensions, and stated compatibility. Treat ANSI-style suitability as confirmed only when the specific listing or manufacturer documentation says so.
4. Compare the set contents. Match each documented collet size to the tap requirements you recorded. Don’t choose a tap collet set for cnc milling by title alone if its contents or compatibility details are unclear.
5. Confirm the full chain. Recheck the machine spindle interface, toolholder, ER chuck, collet, and tap against their respective documentation before ordering.

Setup checks before running the tapping cycle

Before assembly, inspect the collet, chuck, and tap for visible damage, and clean their mating surfaces. Debris or poor seating can interfere with repeatable toolholding. Install and tighten components only as directed by the machine, chuck, and tap manufacturers. Don’t substitute a guessed torque value for the applicable instructions.

Before running the operation, confirm the selected tapping cycle and operating limits in the machine documentation. The collet’s fit does not establish spindle behavior, synchronization, or cycle settings. If an interface or operating requirement remains uncertain, resolve it through the relevant manufacturer documentation before proceeding.

Review Ridiculous Machine Tools Tap Collet Sets and compare the listed specifications with your taps and ER tooling.

Find an RMT Tap Collet Set using verified product details

Ridiculous Machine Tools offers Tap Collet Sets for buyers comparing tap-holding options. RMT ER Tap Collets have an internal square-drive design for holding compatible ANSI-style taps. That feature explains how the collet engages a tap, but it does not confirm that a particular set fits your chuck or covers your tap inventory. Check the applicable listing before choosing a tap collet set for cnc milling.

What to confirm on the RMT product listing

Use the specific product listing to check its configuration. Verify:

• The ER series, and whether it matches your ER collet chuck.
• Every collet size included in the set.
• The supported tap shank and square-drive dimensions, along with any stated ANSI-style compatibility.
• Current product availability and any price or specification you intend to rely on.

Specifications can vary by product and configuration. Don’t transfer details from a separate RMT Tap Collet or another ER product to the set you’re considering. If the listing doesn’t provide enough information to confirm fit, ask for clarification before ordering.

Choose the next step for your tooling setup

Compare the listing with your tap measurements and the complete machine-tool interface. The compatibility chain is the machine spindle interface, toolholder, ER chuck series, tap collet, and tap. Confirm each connection independently. A matching thread designation or square drive alone does not establish that the full setup is compatible.

Review Ridiculous Machine Tools’ Tap Collet Set listings for current product details, then compare the documented contents with the taps used in your operation. Select a set only when its stated ER series and tap dimensions align with your tooling. Base the decision on verified fit, not assumptions about the product title or related collets.

Confirm compatibility before your next tapping setup

Select a tap collet set for cnc milling by checking the complete connection, not the thread designation alone. Match the ER series to the chuck, then confirm the collet’s documented contents and fit with each tap’s shank and square-drive dimensions. A set makes sense only if its listed collets cover the taps you use.

The collet holds the tap; it does not determine the machine’s tapping cycle or spindle behavior. Follow the relevant machine, holder, and tap documentation for setup and operating requirements. Ridiculous Machine Tools offers Tap Collets and Tap Collet Sets, and its ER Tap Collets use an internal square-drive design for compatible ANSI-style taps. Specifications vary by family, size, and configuration, so check the applicable product details before ordering.

Review the available tooling and product information at Ridiculous Machine Tools. Compare the specifications with your setup and choose a Tap Collet Set only when the documented interfaces and tap dimensions match.

Frequently Asked Questions

What does a tap collet do in a CNC milling machine?

A tap collet holds a compatible tap in an ER collet chuck. Its gripping bore holds the tap’s round shank, while an internal square drive on an ER Tap Collet engages the tap’s square section. This helps transmit rotation through the holder. The collet does not set the machine’s tapping cycle or provide spindle synchronization, so check machine and toolholder documentation for operating requirements.

How do I know which ER tap collet fits my tap?

Match the collet’s ER series to the chuck, then compare the collet’s documented tap compatibility with the tap’s round-shank and square-drive dimensions. Thread size alone doesn’t confirm fit. Check the product listing and tap manufacturer’s information for those details. If the supported dimensions or compatibility are unclear, get confirmation before ordering rather than assuming a close size will work.

Can I use any ER collet to hold a tap?

No. A standard ER spring collet and an ER Tap Collet are different designs. A standard collet may grip a compatible round shank, but it doesn’t necessarily have the internal square drive that engages a tap’s square section. Use a collet only when its manufacturer documents compatibility with the tap and chuck. Don’t assume an ER series match alone confirms suitability for tapping.

Does a tap collet set include every size I need?

Not necessarily. Set contents vary, so check the current listing for the ER series and each included collet size. Compare those details with the taps you use, including their shank and square-drive dimensions. A product title or thread-size range may not show all compatibility information. Confirm the actual contents before purchase, and verify current availability with the seller.

Will a tap collet prevent tap breakage?

No collet can guarantee that a tap won’t break. A compatible collet supports the tap, but breakage can also relate to the drilled hole, work material, tap condition, alignment, lubrication, and machine cycle. For a reliable setup, verify the tap-drill size and operating instructions for the specific job, and follow the machine, tap, and holder manufacturers’ guidance.

How do I choose between a tap collet set and individual tap collets?

Choose based on the taps your shop uses and the verified contents available. A set may suit recurring work across several tap sizes if its listed collets match those taps. Individual collets may fit a specific tap requirement or replacement need. Compare ER series, supported dimensions, storage, replacement availability, and current prices rather than assuming one option is better.
